🎓 4: Advanced RAG (Bonus)

🪄 Bonus exercise. Your Exercise 3 chatbot sends every question down the same path: one retriever, one prompt. That works for simple questions, but it struggles when the user names an exact Jira key, asks about several issues at once, or wants test cases.

In this exercise you build a Chatflow that first works out what kind of question it received, then sends it down a path with its own retrieval and prompt. Every prompt, parameter and code snippet you need is on this page, ready to copy.

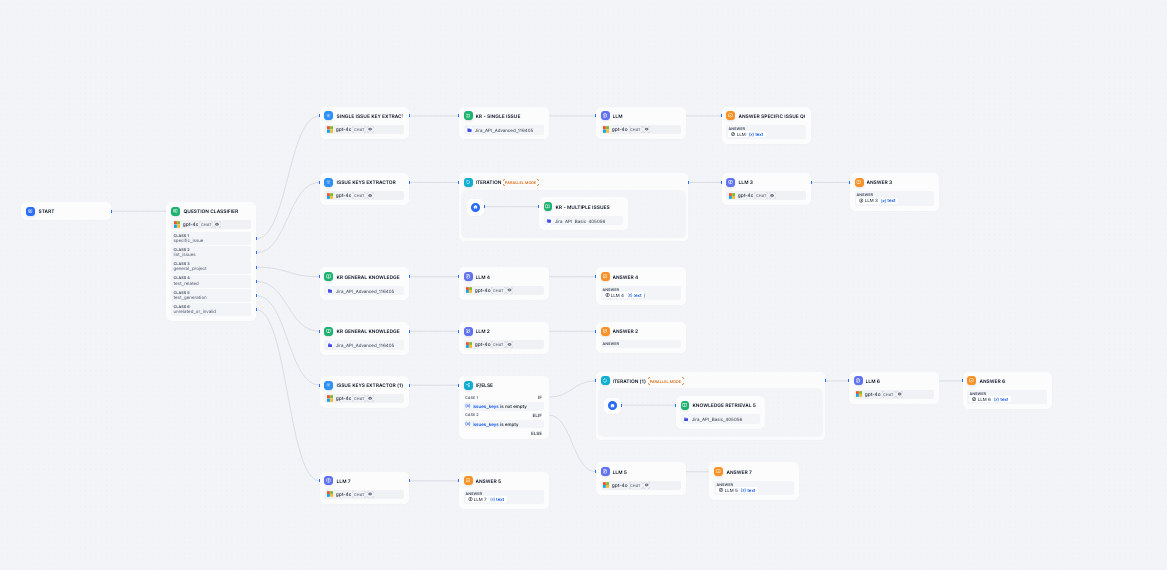

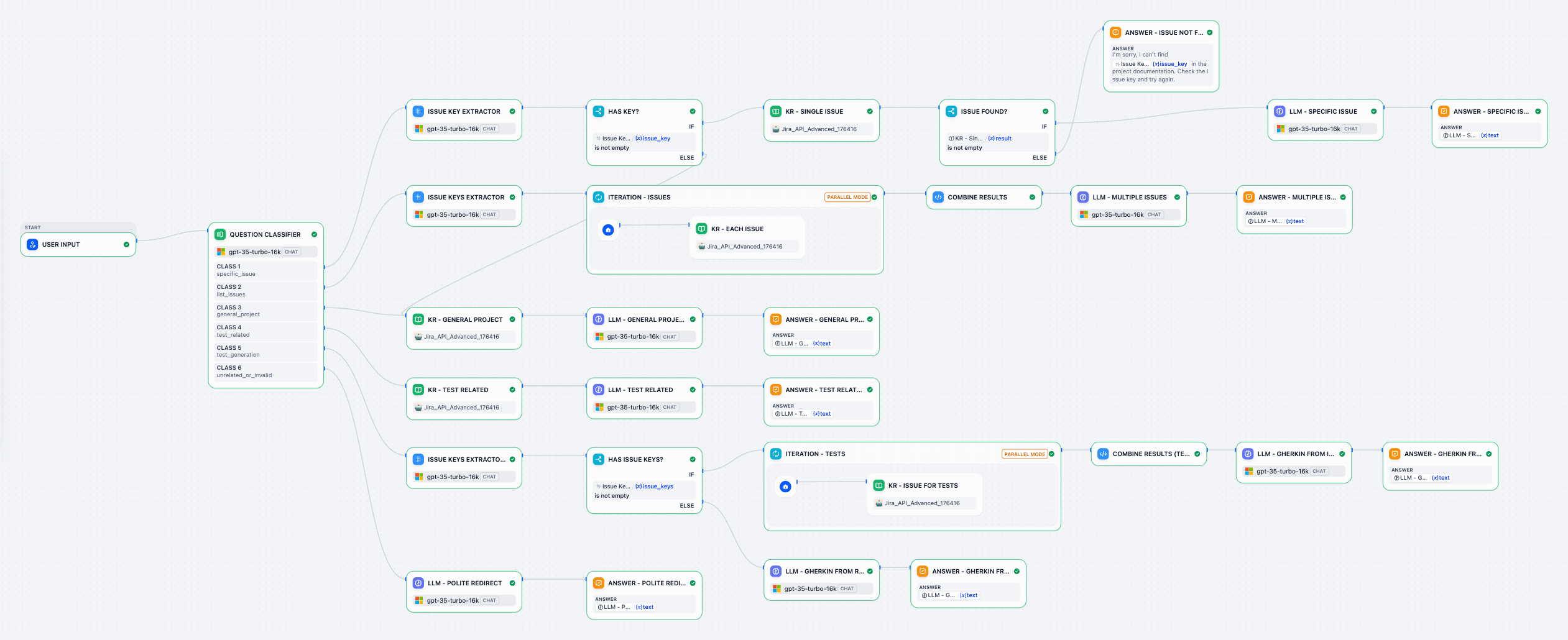

What you'll build: a Question Classifier that routes each question to one of six branches

---

🧩 What You'll Do

• Route questions with a Question Classifier
• Extract Jira keys with a Parameter Extractor and retrieve the exact issue with a metadata filter
• Handle several issues at once with an Iteration and a Code node

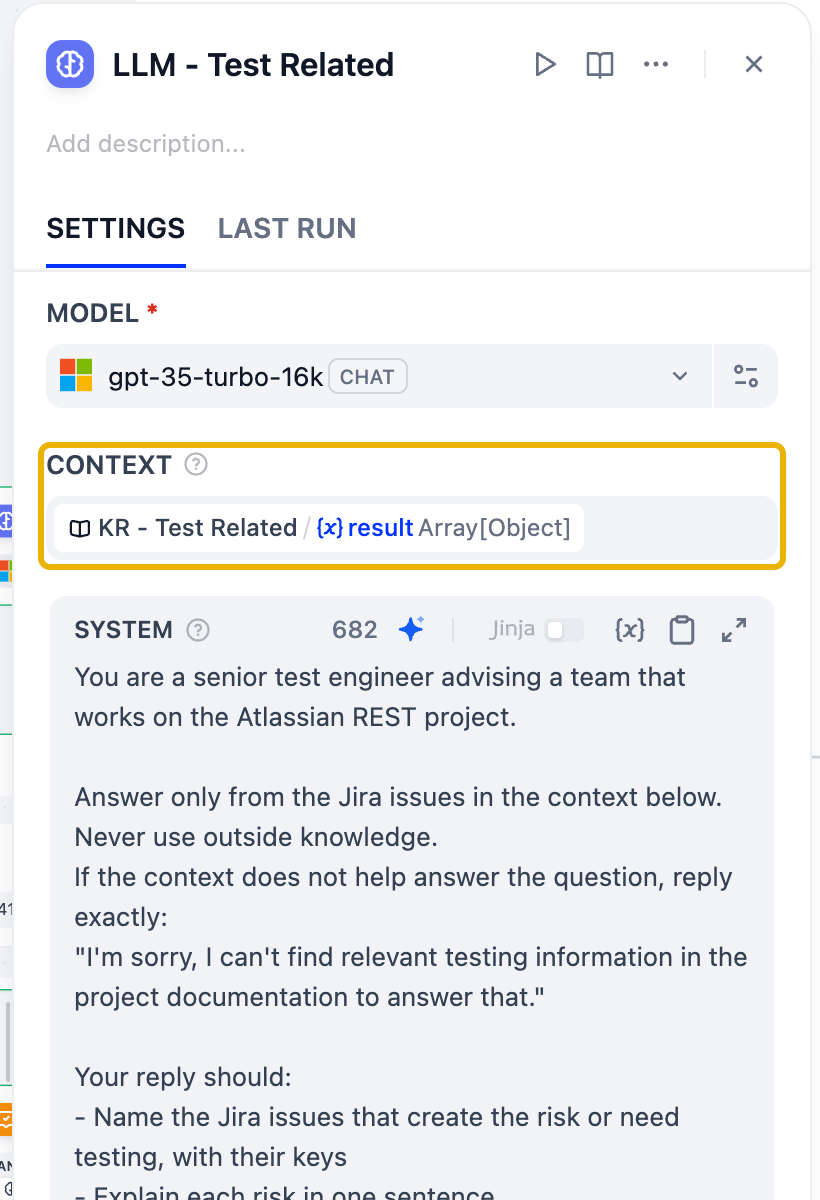

• Give project and test-strategy questions their own retriever and prompt
• Generate Gherkin test cases, using IF/ELSE to handle requests with and without issue keys

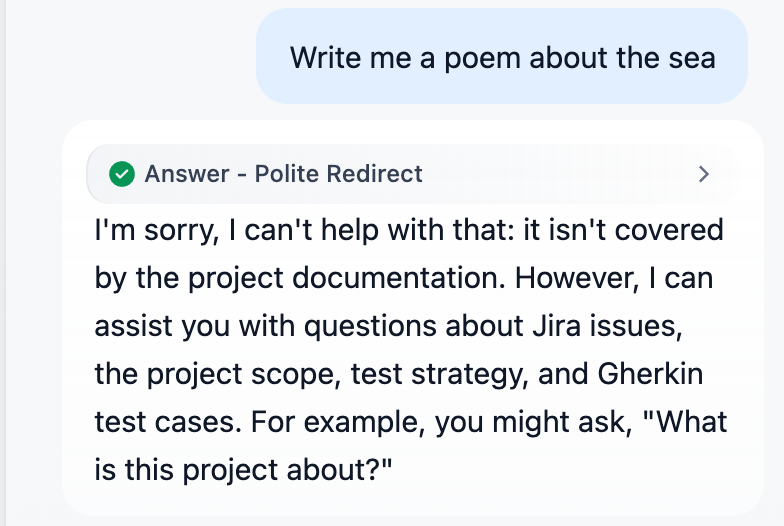

• Politely redirect questions that are out of scope
• Run the acceptance questions and check every route

⏱️ Estimated time: 60-90 minutes to build it all. Short on time? Build Steps 1-3, then import the solution at the end of the page and explore the other branches.

Before you start

• You need the Jira_API_Advanced_* knowledge base from Exercise 2.1. Its documents carry the issue_key metadata field that the exact-key filters use. Jira_API_Basic_* also works; the manual knowledge base from Exercise 2 does not, because it has no metadata.
• Use gpt-35-turbo-16k in every model node, as in Exercise 3.
• Create a new, blank Chatflow (Studio → Create → Create from Blank → Chatflow). Name it, for example, Exercise 4: Advanced RAG. Keep the User Input node and delete the default LLM and Answer nodes; every branch gets its own.

How to use the copy blocks: hover a block and click the copy icon in its top-right corner, then paste into the Dify field named above the block. When you paste a prompt, Dify turns {{#context#}} into the purple Context block and {{#sys.query#}} into the User Input / query variable, just like in Exercise 3.

Name your nodes as you go. Click a node's title to rename it. This page uses names like KR - Single Issue (KR = Knowledge Retrieval). Using the same names makes the variable pickers much easier to read, because every variable is shown as Node name / variable.

---

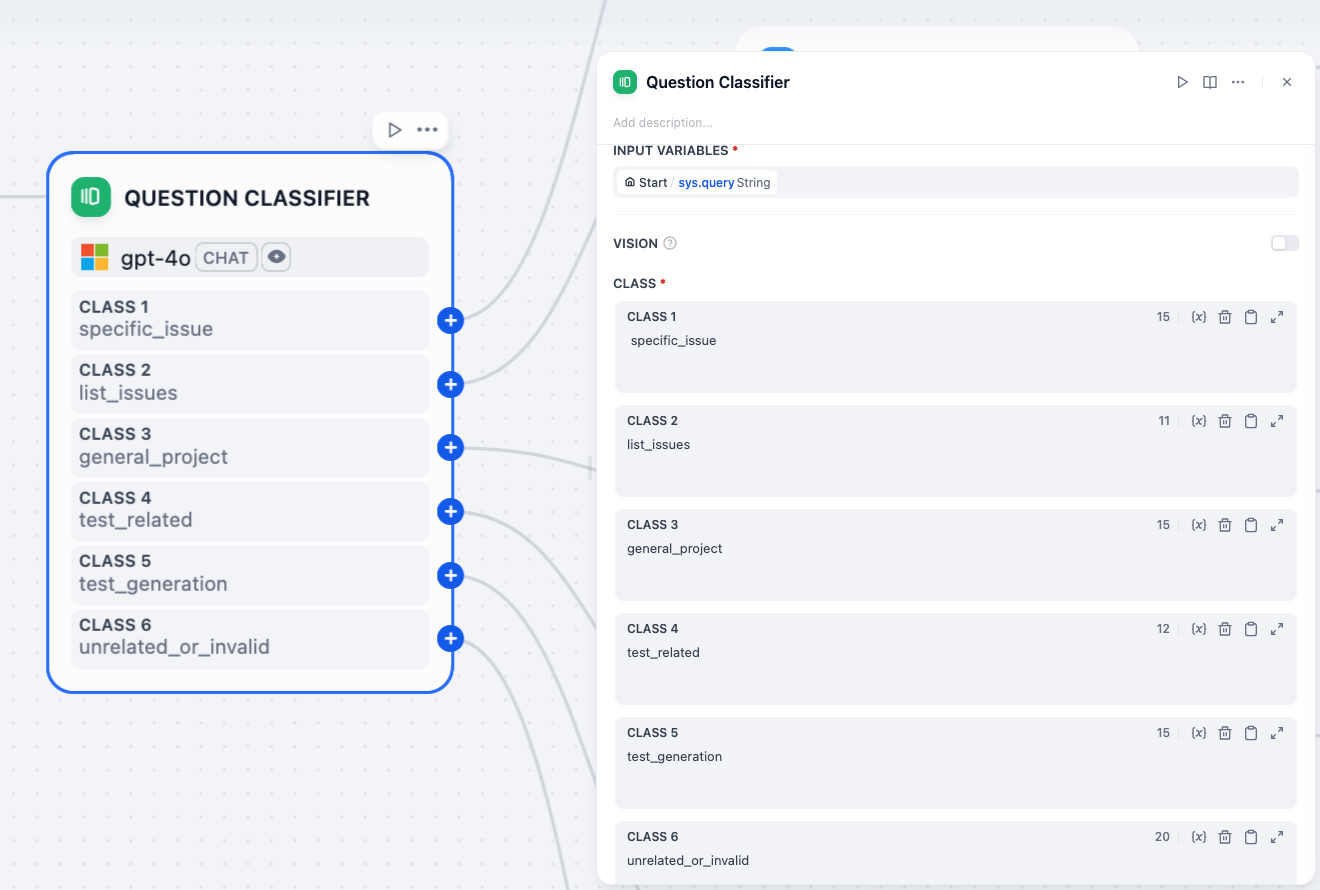

🛠️ Step 1: Route Questions with a Question Classifier

A Question Classifier asks the LLM to put the user's question into one of the classes you define. Each class gets its own output handle, so each type of question can follow its own path.

1. Hover the right edge of User Input, click +, and add a Question Classifier. Its input variable is already sys.query.
2. Select gpt-35-turbo-16k. Click the settings icon next to the model and set Temperature to 0. Routing should be predictable, not creative.
3. Add classes until there are six, and type one name into each class's text box, in this order:

Class	Name	Example question
1	specific_issue	What is REST-266 about?
2	list_issues	Summarize REST-266 and REST-265
3	general_project	What is this project about?
4	test_related	What should we test for backward compatibility?
5	test_generation	Generate test cases for REST-266
6	unrelated_or_invalid	Write me a poem about the sea

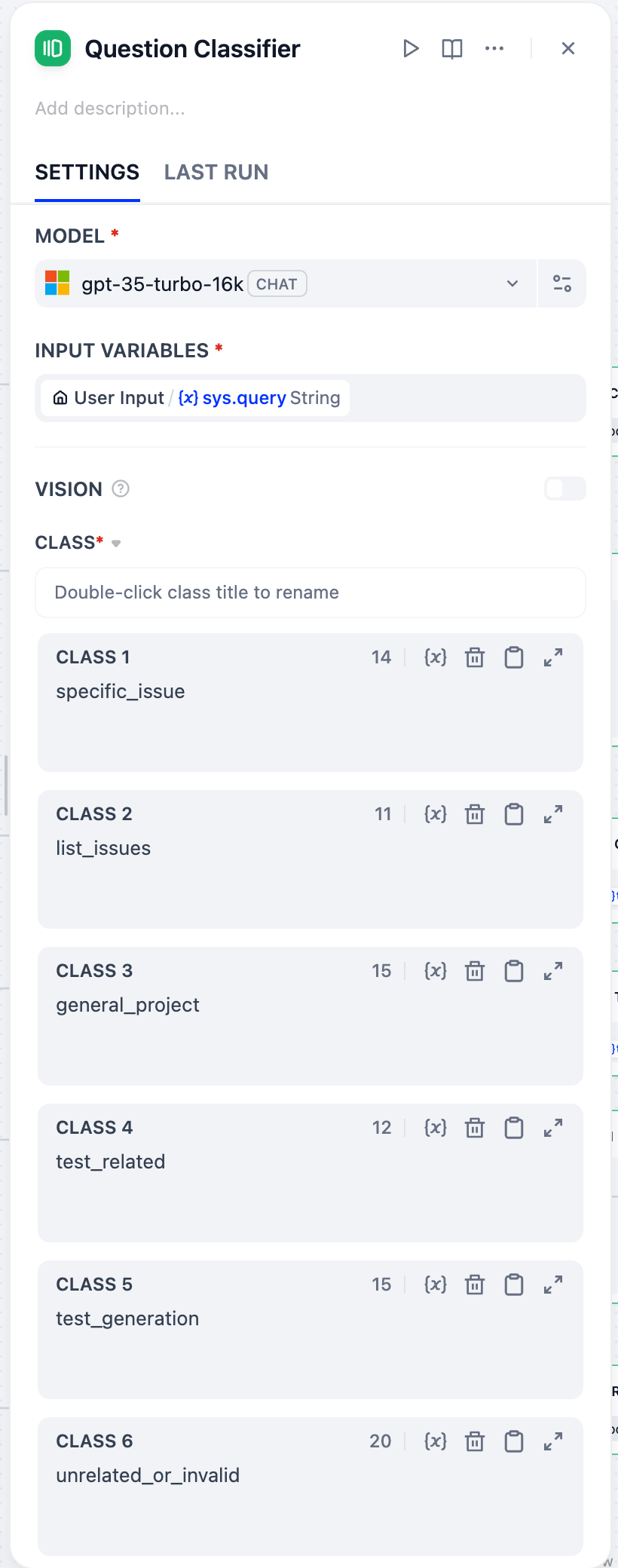

The six classes

4. Class names alone are ambiguous. For example, is "Generate tests for REST-266" about a specific issue, or is it test generation? Open Advanced Setting at the bottom of the panel and paste this into Instruction:

Question Classifier → Advanced Setting → Instruction

You classify questions sent to a software testing assistant for the Atlassian REST Jira project.
Choose exactly ONE category:

- specific_issue: asks about one Jira issue that it names by key or number. Examples: "What does REST-266 fix?", "Who is assigned to issue 259?"
- list_issues: mentions two or more Jira issue keys and asks to summarize, compare or relate them. Example: "Summarize REST-266 and REST-265"
- general_project: asks about the project as a whole (scope, modules, features, contributors), about a group of issues, or which issue matches a description, without naming a key. Examples: "What is this project about?", "Which issues relate to Jackson?", "Which issue reports that CORS preflight requests are not supported?"
- test_related: asks about test strategy, risk, regression or coverage, without asking to write test cases. Example: "What should we test for backward compatibility?"
- test_generation: asks to write, generate or create test cases or Gherkin scenarios, with or without issue keys. Examples: "Generate test cases for REST-266", "Create test scenarios for a password reset feature"
- unrelated_or_invalid: not about this project, its Jira issues, its documentation or testing. Examples: "Write me a poem", "Why is the sky blue?"

If the user asks to write or generate tests, choose test_generation even when the question contains issue keys.

---

🛠️ Step 2: Branch specific_issue: Exact-Key Retrieval

In Exercise 3, a question about REST-266 searched the whole knowledge base by meaning. Similar issues could outrank REST-266, and a key that doesn't exist still returned something. This branch pulls the key out of the question and retrieves only the document whose issue_key metadata matches.

specific_issue → Issue Key Extractor → Has Key?
  IF → KR - Single Issue → Issue Found?
    IF → LLM - Specific Issue → Answer - Specific Issue
    ELSE → Answer - Issue Not Found
  ELSE → KR - General Project (the Step 4 branch)

2.1 Parameter Extractor: Issue Key Extractor

1. From the classifier's specific_issue handle, add a Parameter Extractor and rename it Issue Key Extractor. Select gpt-35-turbo-16k with Temperature 0. The input variable is User Input / query.
2. Under Extract Parameters, click + and add:
   • Name: issue_key
   • Type: String
   • Required: off. Some questions look like single-issue questions but name no key; the next step handles them
   • Description: The Jira issue key the user asks about, for example REST-266.
3. Paste this into Instruction. The normalization line lets "issue 266" or "rest266" find REST-266:

Issue Key Extractor → Instruction

Extract the one Jira issue key the user is asking about.
A Jira issue key is an uppercase project prefix, a hyphen and a number, for example REST-266.
Normalize other spellings to that format. This project's prefix is REST, so "rest 266", "REST266", "issue 266" and "ticket 266" all become REST-266.
Return only the key.

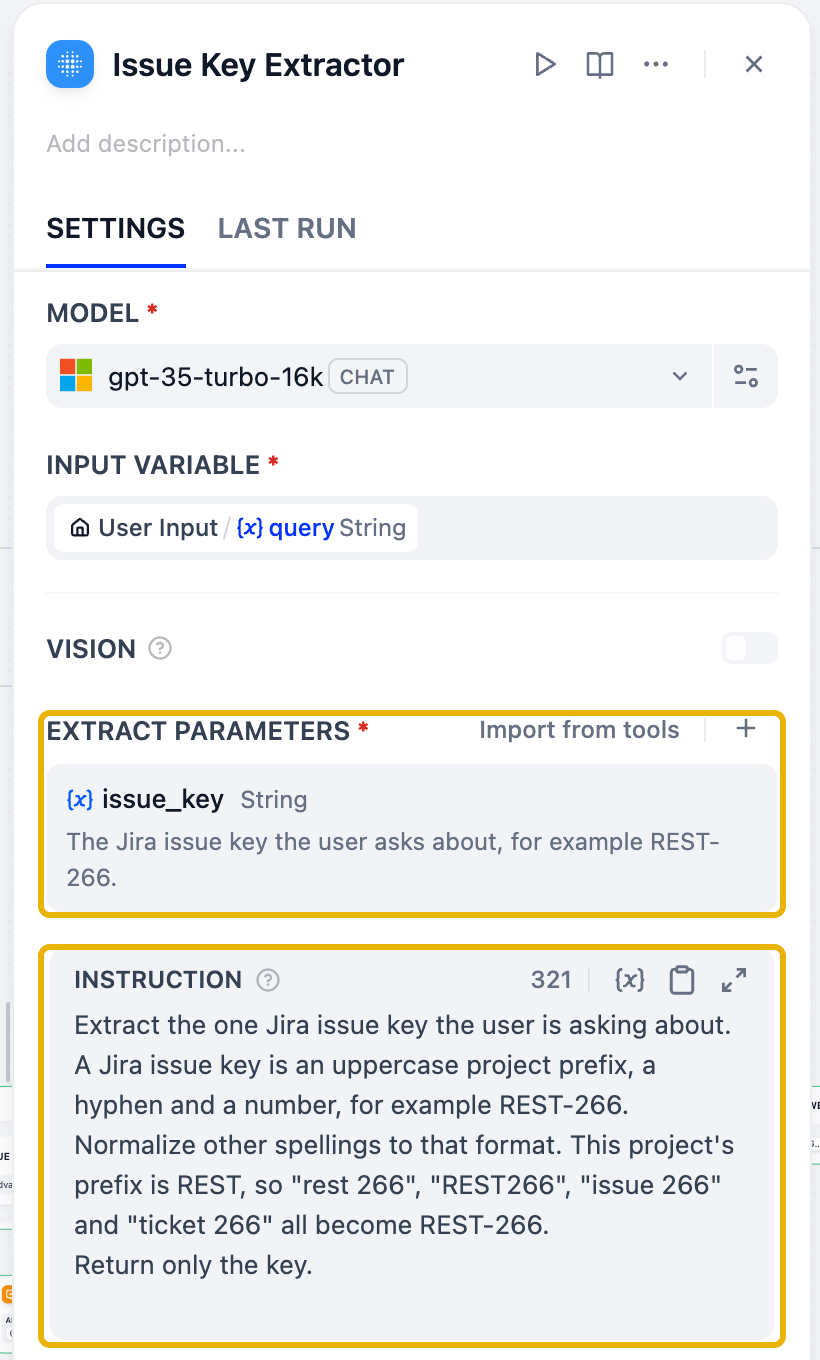

The issue_key parameter and its instruction

2.1b Cheaper alternative: extract the key with code

Your LLM extractor works. But look at what it does: it finds a pattern like REST-266 in a sentence. Every question pays for an LLM call to do that, and a few lines of Python can do the same job. Here are the two measured side by side on the same questions:

Extractor	Tokens per question	Time	"What is REST-266 about?"	"What does issue 266 fix?"
Parameter Extractor (LLM)	~550	1.0-1.7 s	REST-266	REST-266
Code node (Python)	0	~0.1 s	REST-266	REST-266

Rule of thumb: if you can describe the answer as a pattern, use code. It's free, instant, and gives the same output every time. Keep the LLM for things only language understanding can do, such as "the ticket about Jackson leniency", where there is no key to match.

To swap the LLM for code:

1. Add a Code node between the Question Classifier's specific_issue handle and Has Key?, and rename it Extract Keys (Code). Keep Python3.
2. Replace the default code with:

Extract Keys (Code) → Code (Python3)

import re

# Jira projects in the knowledge base. The first one is used for bare
# numbers such as "issue 266". Add more prefixes if you ingest other projects.
PROJECTS = ["REST"]

# A known prefix, an optional hyphen or space, and a number:
# REST-266, rest 266, REST266
PROJECT_KEY = re.compile(r"\b(" + "|".join(PROJECTS) + r")[\s-]?(\d+)\b", re.IGNORECASE)
# A bare number after a word that means "issue": issue 266, ticket #266
BARE_NUMBER = re.compile(r"\b(?:issue|ticket|bug)\s*#?\s*(\d+)\b", re.IGNORECASE)


def main(query: str) -> dict:
    found = []  # (position in the question, normalized key)
    for match in PROJECT_KEY.finditer(query):
        found.append((match.start(), match.group(1).upper() + "-" + match.group(2)))
    for match in BARE_NUMBER.finditer(query):
        found.append((match.start(), PROJECTS[0] + "-" + match.group(1)))

    issue_keys = []
    for _, key in sorted(found):
        if key not in issue_keys:
            issue_keys.append(key)

    return {
        "issue_key": issue_keys[0] if issue_keys else "",
        "issue_keys": issue_keys,
    }

3. Now make the node's variables match the code. Dify passes each input variable to main() by name, and reads back the returned keys by output variable name, so the names must match exactly:

In the node	Default	Change it to
Input Variables	arg1, arg2	query → User Input / query (delete arg2)
Output Variables	result (String)	issue_key (String) and issue_keys (Array[String]); delete result

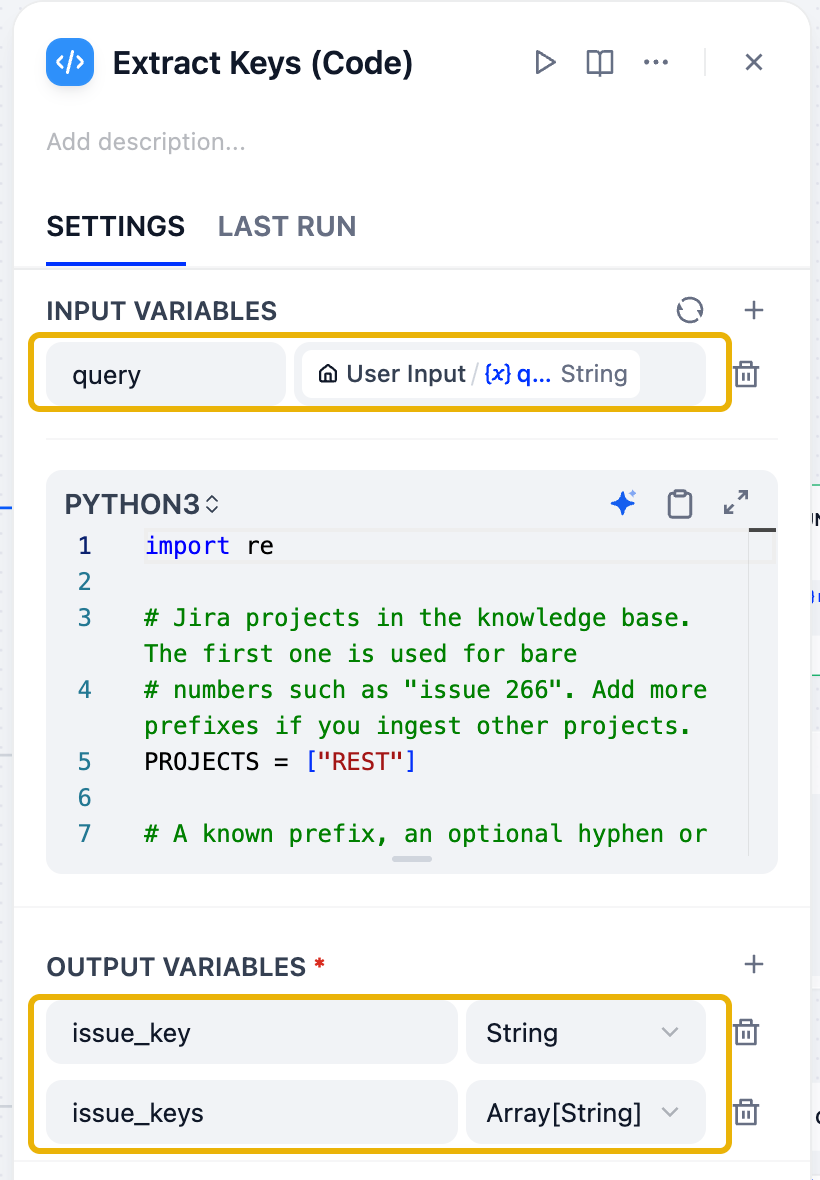

The same outputs as the LLM extractor, without an LLM

4. Rewire the branch, and check each item yourself. Dify's Checklist (the orange badge next to Preview) catches only one of these mistakes:
   • Point the condition in Has Key?, the filter condition in KR - Single Issue and the variable in Answer - Issue Not Found at Extract Keys (Code) / issue_key. If you delete Issue Key Extractor first, all three keep pointing at a node that no longer exists. The Checklist flags the Answer node ("Invalid variable"), but not the filter condition. The filter then silently matches nothing.
   • Delete Issue Key Extractor.
   • The classifier's specific_issue handle connects only to Extract Keys (Code), and list_issues still connects to Issue Keys Extractor (plural: the Step 3 node, not the one you just deleted). A class connected to two nodes is valid wiring, so nothing flags it. Dify simply runs both branches.
5. Rerun the Step 2 checks. Open the node's Last Run tab to see exactly what it extracted.

Something wrong after the swap? Expand Workflow Process above the answer and compare it with these symptoms:

• Code node fails with TypeError: main() got an unexpected keyword argument 'arg1': the input variable is still arg1. Rename it to query.
• Code node fails with an error about its outputs: the Output Variables don't match the keys the code returns. Use issue_key (String) and issue_keys (Array[String]).
• All nodes are green, but the reply is "I'm sorry, I can't find" followed by a blank where the key should be: KR - Single Issue still filters on the deleted extractor's issue_key. It returns nothing within a few milliseconds, too fast to have searched, so Issue Found? takes ELSE. Re-point the filter condition to Extract Keys (Code) / issue_key.
• Nodes from another branch run too, for example Issue Keys Extractor, Iteration - Issues and LLM - Multiple Issues on a single-issue question: one class handle connects to two branches, and Dify runs both. The answers can contradict each other. A "not found" reply can even appear with a REST-266 citation, because the other branch found it. Move the extra connection to the right class handle.

Notice what the code does not do, and why:

• PROJECTS lists the prefixes that count as Jira keys. Without that list, a question about UTF-8 would be read as issue number 8 in project UTF. Code only knows the patterns you give it, so pin them down.
• It doesn't guess. Anything that doesn't match returns an empty issue_key, and Has Key? sends the question to semantic search instead of a filter that can't match.
• The node also returns issue_keys, a list of every key in the question, so it can replace the Issue Keys Extractor in Steps 3 and 5 as well. A question without keys gives an empty list, and the Has Issue Keys? check in Step 5 works unchanged.

Try it: ask Who is assigned to rest266?, Status of ticket #259 and Does UTF-8 break JSON parsing?, and compare the Last Run output of the code node with the LLM extractor's. For the best of both, run the code first and fall back to the LLM extractor only when the code finds nothing. You'll need an IF/ELSE and a Variable Aggregator to merge the two paths. The downloadable solution uses the LLM extractor, so you can compare the two.

2.2 IF/ELSE: Has Key?

Not every question routed here contains a key. "Which issue reports that CORS preflight requests are not supported?" asks about one issue, but describes it instead of naming it. The extractor then returns an empty issue_key. The exact-key filter can't match an empty key, so without this step the chatbot would answer "I can't find" for an issue that exists.

1. After the extractor, add an IF/ELSE node named Has Key?.
2. IF: Issue Key Extractor / issue_key is not empty. The IF branch continues to the exact-key retrieval in 2.3.
3. ELSE: connect it to KR - General Project, the semantic-search retriever you build in Step 4. A node can receive connections from several branches. If you haven't built Step 4 yet, come back and connect it then.

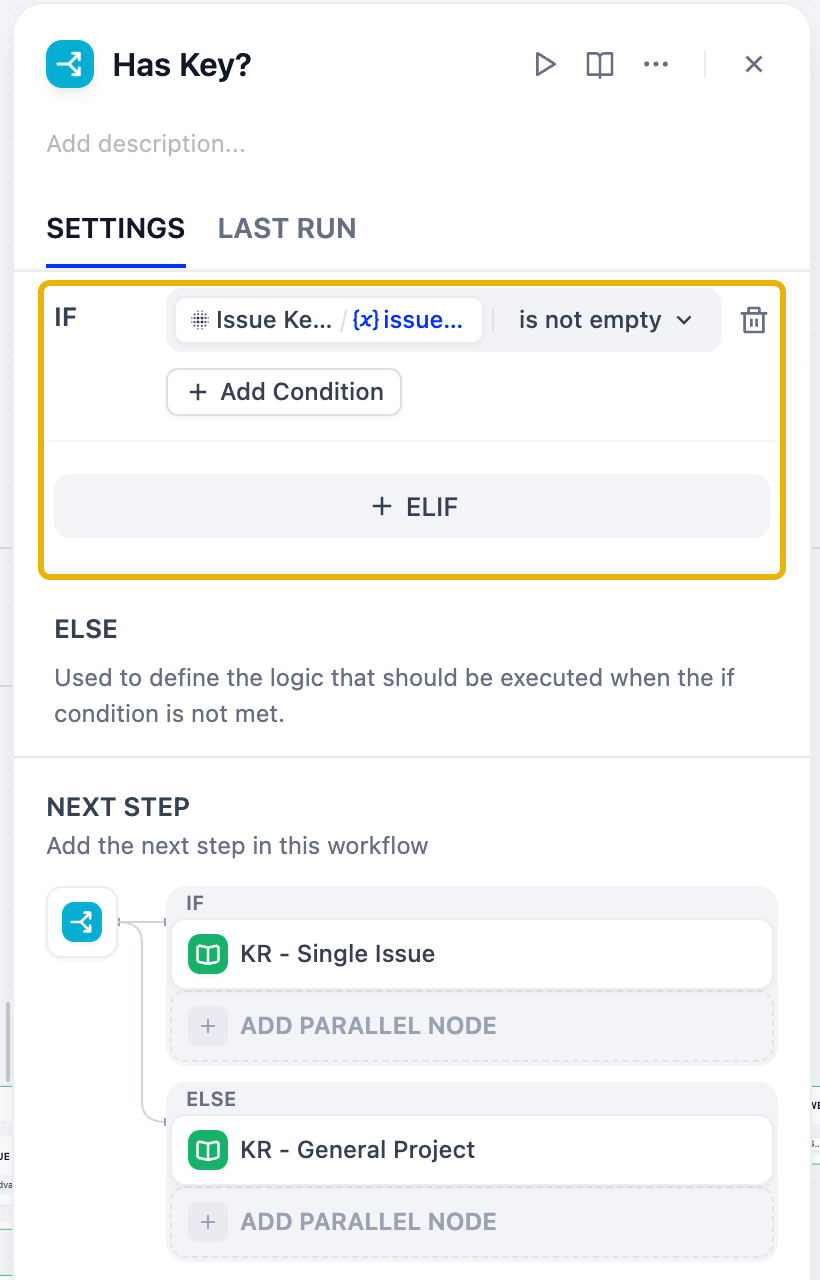

No key → search by meaning instead of by key

2.3 Knowledge Retrieval with a metadata filter: KR - Single Issue

1. From the IF handle of Has Key?, add a Knowledge Retrieval node and rename it KR - Single Issue. Keep Query Text as sys.query.
2. Click + next to Knowledge and add Jira_API_Advanced_*.
3. Set Metadata Filtering to Manual and click Conditions → Add Condition:
   • Field: issue_key
   • Operator: is
   • Value: switch to Variable and pick Issue Key Extractor / issue_key

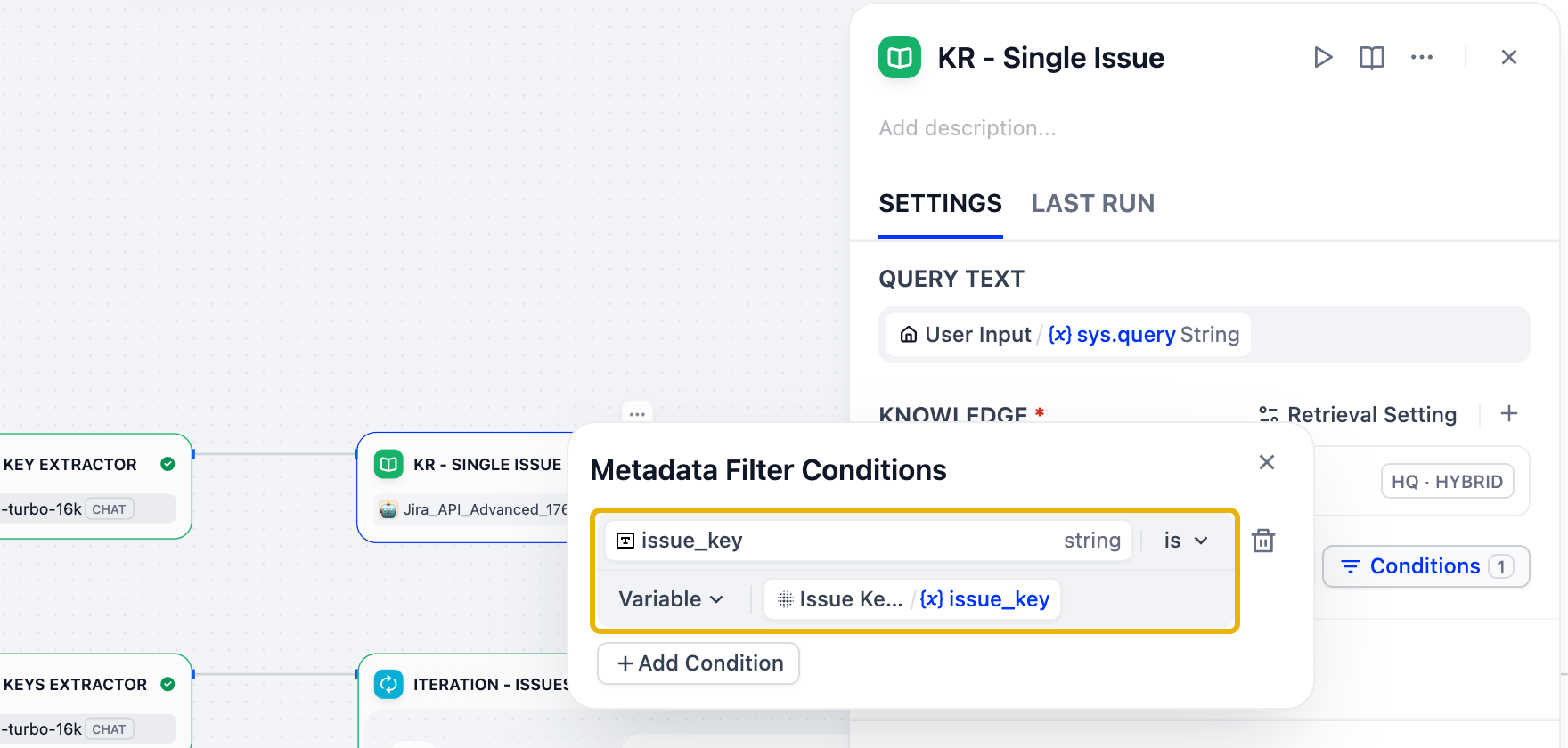

The exact-key filter

4. Open Retrieval Setting. Set Top K to 4 and leave Score Threshold off.

Why no score threshold here? The filter already guarantees that only REST-266 can come back. A threshold would only drop it: with the question "What is REST-266 about?", REST-266 scores 0.27 in Jira_API_Basic_*. A 0.3 threshold removes it, and the chatbot then answers "can't find that issue" for an issue that exists. Use thresholds on open-ended searches (Exercise 3), not on exact-key lookups.

2.4 IF/ELSE: Issue Found?

If the key doesn't exist, the filtered retriever returns nothing. You might expect the LLM to say so. In testing, though, gpt-35-turbo-16k answered What is REST-999 about? with an invented issue, complete with status and assignee, even though the prompt said to refuse when the context is empty. Don't leave this decision to the model; make it with a rule.

1. After KR - Single Issue, add an IF/ELSE node named Issue Found?.
2. IF: KR - Single Issue / result is not empty. The IF branch continues to the LLM in 2.5.
3. ELSE: add an Answer node named Answer - Issue Not Found. Paste the text below, then replace [issue_key] with the variable Issue Key Extractor / issue_key (type { to pick it):

Answer - Issue Not Found → Answer

I'm sorry, I can't find [issue_key] in the project documentation. Check the issue key and try again.

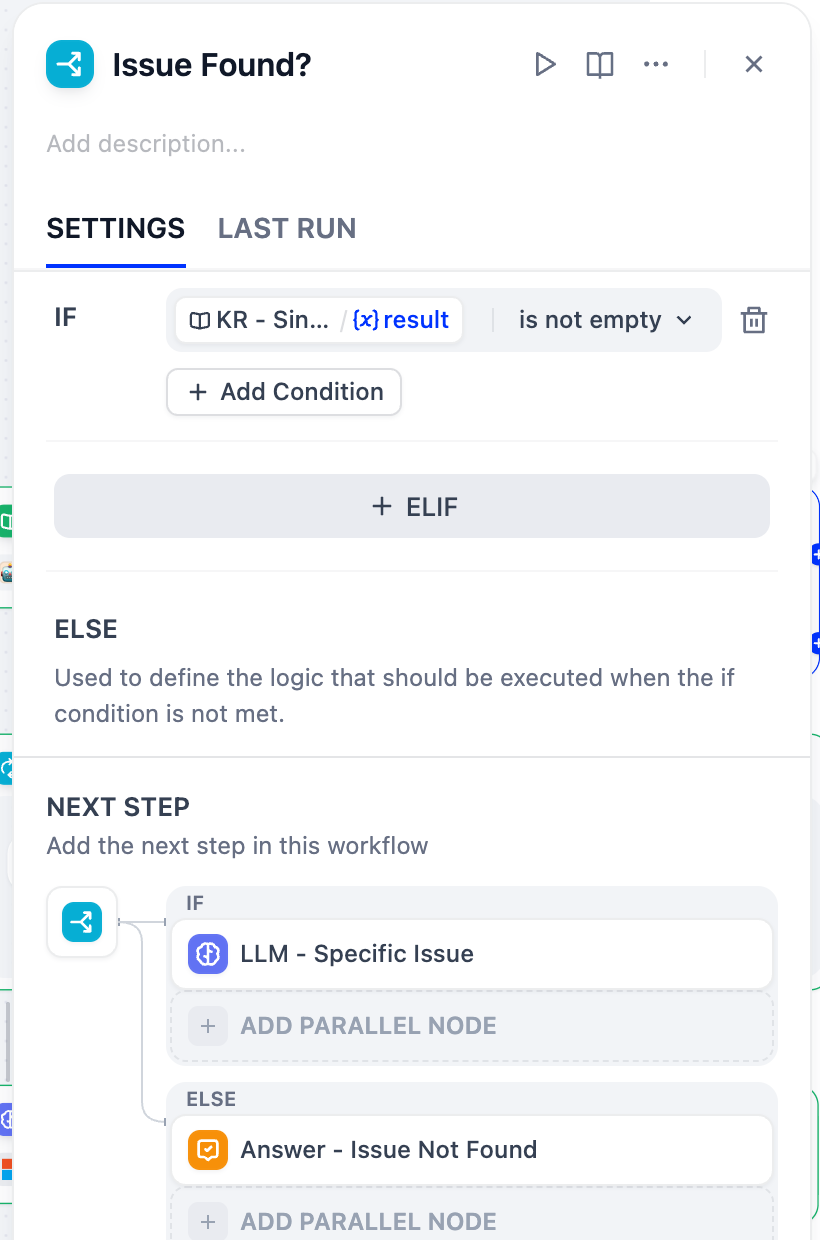

An empty retrieval never reaches the LLM

2.5 LLM and Answer

1. From the IF handle of Issue Found?, add an LLM node, rename it LLM - Specific Issue, select gpt-35-turbo-16k, and set Temperature to 0.3.
2. Under Context, click Set variable and choose KR - Single Issue / result.
3. Paste this into the SYSTEM prompt:

LLM - Specific Issue → SYSTEM

You are a software testing assistant helping engineers understand Jira issues in the Atlassian REST project.

Answer only from the context below. Never use outside knowledge.
The context was filtered to the Jira issue the user asked about. If it is empty or does not mention that issue, reply exactly:
"I'm sorry, I can't find details about that issue in the project documentation."

Your reply should:
- Start with the issue key and its summary
- List the type, status and assignee
- Explain in two or three sentences what the issue changes or fixes
- End with "What to test": two to four concrete test ideas based on the description

Context:
{{#context#}}

User question:
{{#sys.query#}}

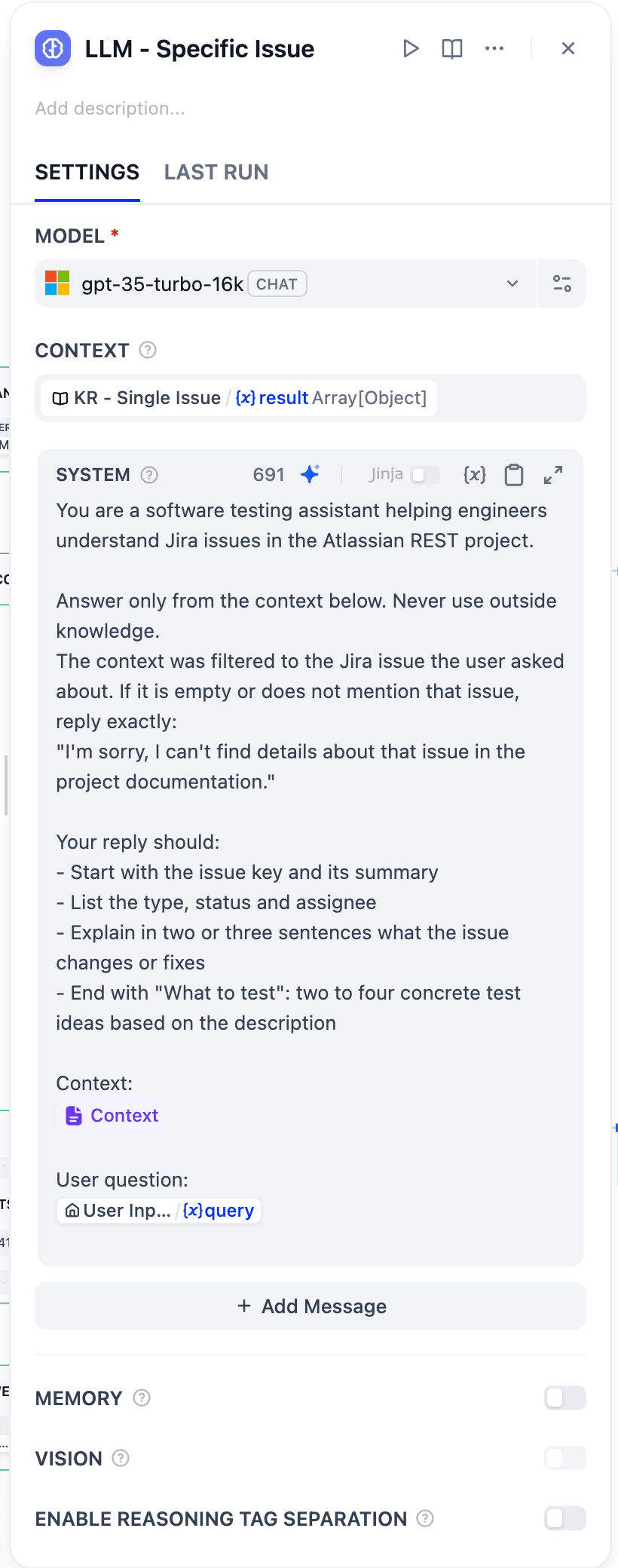

Context bound to the filtered retriever; the pasted prompt shows the Context block and the query variable

4. Add an Answer node, rename it Answer - Specific Issue, and set its content to LLM - Specific Issue / text (type { or use the {x} button).

✅ Check it

Click Preview and ask What is REST-266 about?. The label above the answer shows which Answer node replied: it should be Answer - Specific Issue, with a single citation to REST-266. Also try What does issue 266 fix?, which should find REST-266 too.

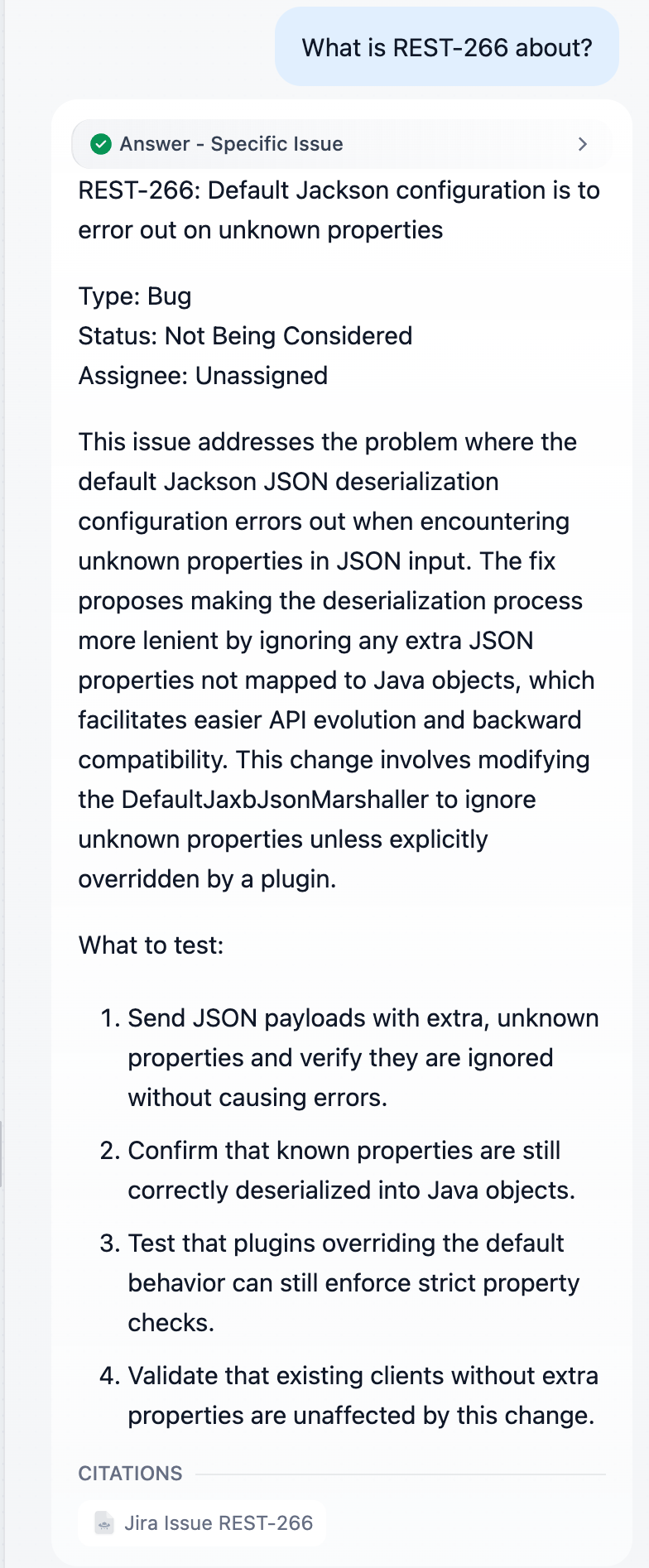

Answered by the specific_issue branch, grounded in REST-266 only

Then ask What is REST-999 about?. No document has that key, so the reply must come from Answer - Issue Not Found:

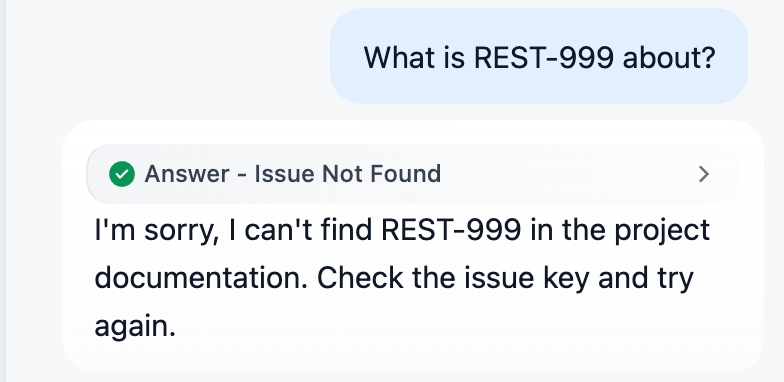

A missing key gets a fixed reply, not an invented issue

---

🛠️ Step 3: Branch list_issues: One Retrieval per Issue

One search for "REST-266 and REST-265" returns whichever chunks score best, often mostly one issue. This branch extracts every key and runs one filtered retrieval per key with an Iteration. A Code node then combines the results and reports any keys that weren't found.

list_issues → Issue Keys Extractor → Iteration - Issues [ KR - Each Issue ] → Combine Results → LLM - Multiple Issues → Answer - Multiple Issues

3.1 Parameter Extractor: Issue Keys Extractor

From the list_issues handle, add a Parameter Extractor named Issue Keys Extractor (gpt-35-turbo-16k, Temperature 0) with one parameter:

• Name: issue_keys (plural; the Iteration reads this exact name)
• Type: Array[String]
• Required: on
• Description: Every Jira issue key in the question, for example ["REST-266", "REST-265"].

Issue Keys Extractor → Instruction

Extract every Jira issue key mentioned in the user's question, in the order they appear.
A Jira issue key is an uppercase project prefix, a hyphen and a number, for example REST-266.
Normalize other spellings to that format. This project's prefix is REST, so "rest 266", "REST266", "issue 266" and "ticket 266" all become REST-266.
If the question contains no issue key, return an empty list.

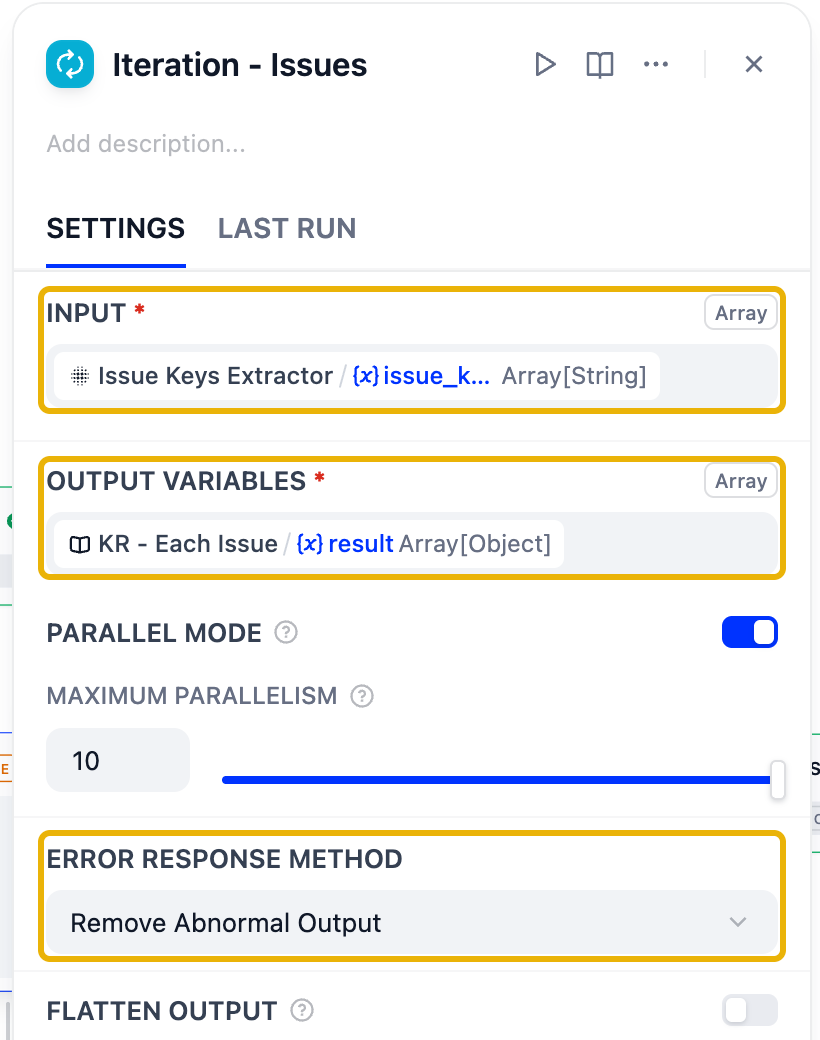

3.2 Iteration: Iteration - Issues

1. After the extractor, add an Iteration node named Iteration - Issues.
2. Input: Issue Keys Extractor / issue_keys. The Iteration runs its inner nodes once per key, and the current key is available as item.
3. Inside the Iteration box, click + after the start icon and add a Knowledge Retrieval named KR - Each Issue:
   • Query Text: Iteration - Issues / item (not sys.query, which contains every key)
   • Knowledge: Jira_API_Advanced_*
   • Metadata Filtering: Manual, issue_key is Variable Iteration - Issues / item
   • Retrieval Setting: Top K 4, Score Threshold off

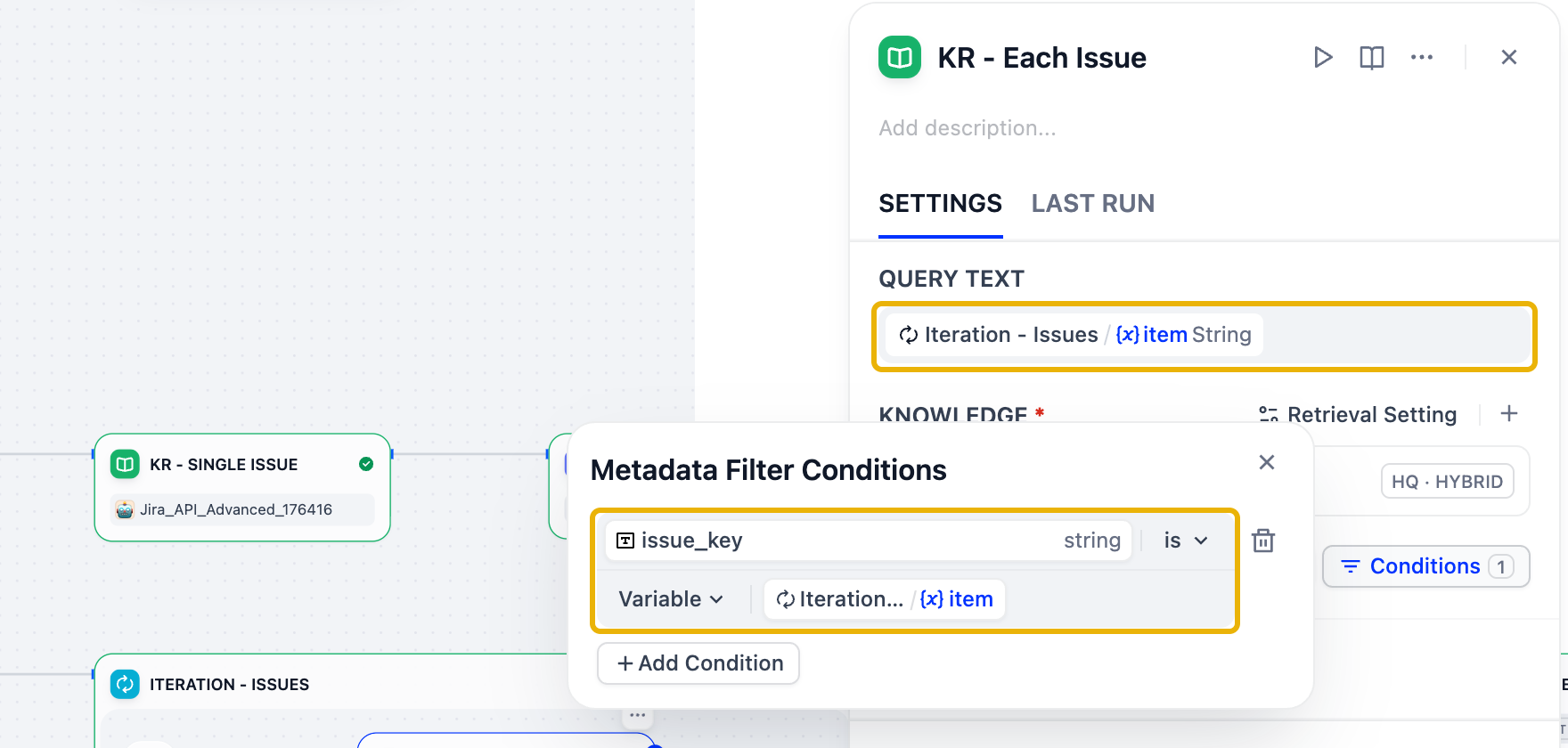

Inside the loop, the query and the filter both use the current item

4. Back on the Iteration node, set:
   • Output Variables: KR - Each Issue / result
   • Parallel Mode: on (optional; issues are retrieved at the same time)
   • Error Response Method: Remove Abnormal Output, so one failing key doesn't fail the whole run
   • Flatten Output: off

Input, output and error handling

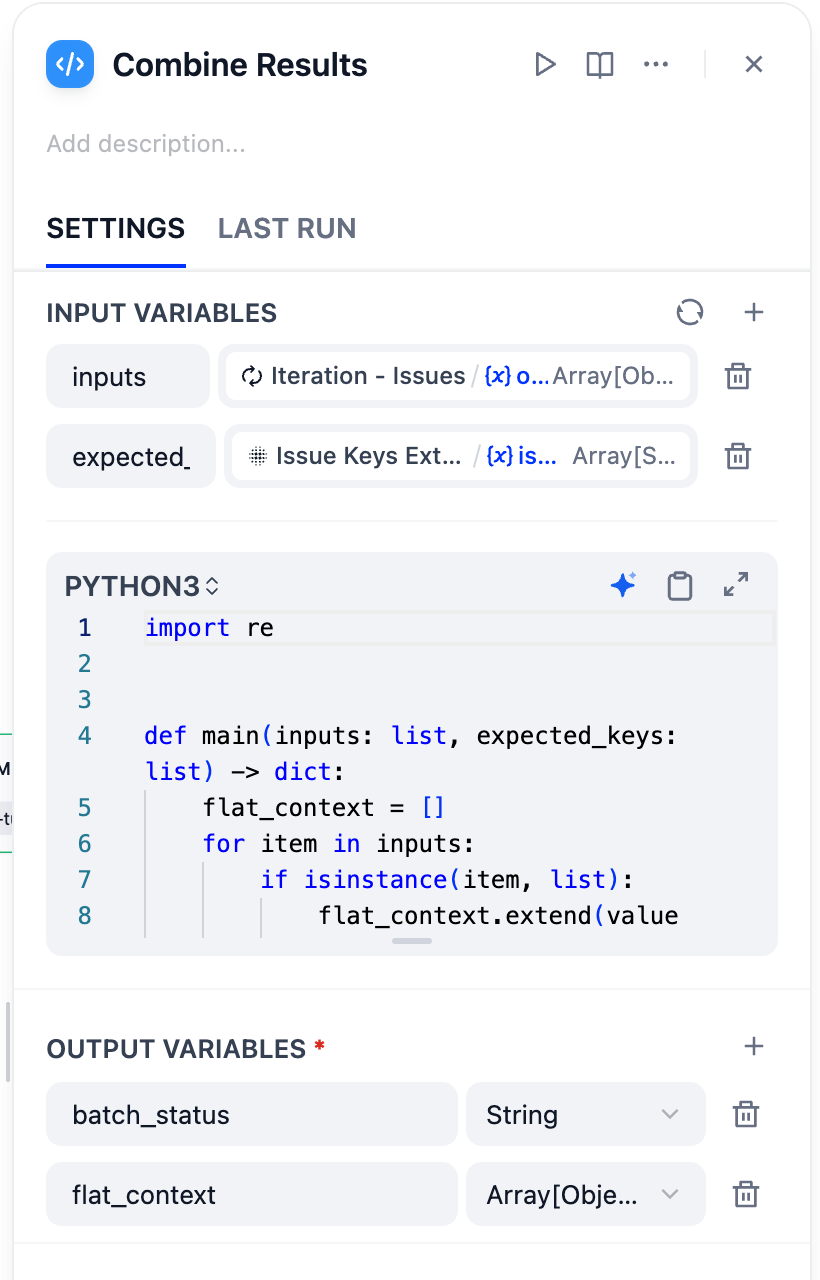

3.3 Code: Combine Results

The Iteration returns a list of results, one per key. A key that doesn't exist, such as REST-999, just produces an empty result, and nothing tells the LLM that it's missing. This Code node flattens the results into one context list and compares the requested keys with the keys actually found.

1. After the Iteration, add a Code node named Combine Results. Keep Python3.
2. Input Variables: the names must match the arguments of main() in the code below:
   • rename arg1 to inputs and pick Iteration - Issues / output
   • rename arg2 to expected_keys and pick Issue Keys Extractor / issue_keys
3. Replace the code with:

Combine Results → Code (Python3)

import re


def main(inputs: list, expected_keys: list) -> dict:
    flat_context = []
    for item in inputs:
        if isinstance(item, list):
            flat_context.extend(value for value in item if isinstance(value, dict))
        elif isinstance(item, dict):
            flat_context.append(item)

    expected = [str(key).upper() for key in expected_keys if key]
    retrieved_keys = set(re.findall(
        r"(?<![A-Z0-9-])[A-Z][A-Z0-9]+-\d+(?![A-Z0-9-])",
        str(flat_context).upper(),
    ))
    completed = [key for key in expected if key in retrieved_keys]
    missing = [key for key in expected if key not in retrieved_keys]

    if not expected:
        batch_status = "No Jira issue keys were requested."
    elif not completed:
        batch_status = "No requested Jira issues were retrieved: " + ", ".join(expected) + "."
    elif missing:
        batch_status = "Partial result: retrieved " + str(len(completed)) + " of " + str(len(expected)) + " requested issues. Missing: " + ", ".join(missing) + "."
    else:
        batch_status = "Complete result: retrieved all " + str(len(expected)) + " requested issues."

    return {"flat_context": flat_context, "batch_status": batch_status}

4. Output Variables: delete the default result and add flat_context as Array[Object] and batch_status as String, the two keys the code returns.

Inputs, code and outputs

3.4 LLM and Answer

1. Add an LLM named LLM - Multiple Issues (Temperature 0.3) with Context set to Combine Results / flat_context.
2. Paste the prompt into SYSTEM. Then select the placeholder [batch_status], delete it, type { and pick Combine Results / batch_status.

LLM - Multiple Issues → SYSTEM

You are a software testing assistant helping engineers understand Jira issues in the Atlassian REST project.

Answer only from the context below. Never use outside knowledge.
The context holds the Jira issues retrieved for the keys the user asked about.

Batch status: [batch_status]
If the batch status starts with "Partial result" or "No requested Jira issues", begin your reply with that status and name the missing keys. Never describe an issue that is not in the context.

For each issue found, in the order the user asked:
- A heading with the issue key and summary
- Type, status and assignee
- One or two sentences on what it changes
- What to test: two or three concrete ideas

If the issues share a component, risk or theme, finish with a short "How they relate" section.

Context:
{{#context#}}

User question:
{{#sys.query#}}

3. Add Answer - Multiple Issues showing LLM - Multiple Issues / text.

✅ Check it

Ask Summarize REST-266 and REST-265. You should get one section per issue and citations for both. Then ask Summarize REST-266 and REST-999. The answer must start with the partial status and must not invent REST-999:

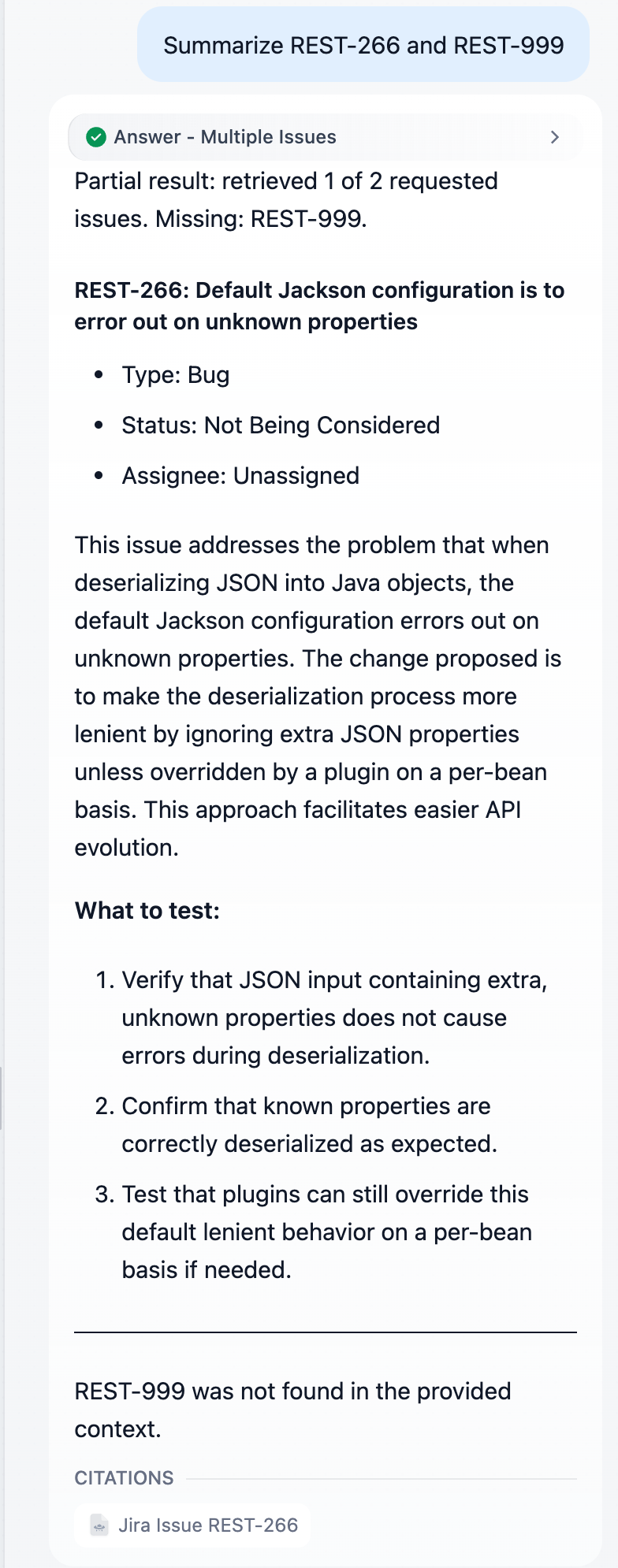

A partial batch is reported, not hidden

---

🛠️ Step 4: Branches general_project and test_related

These two branches don't name a key, so they use a normal semantic search, as in Exercise 3. They differ in their prompts: a project overview needs a summary across issues, while a test-strategy question needs risks and recommendations.

general_project → KR - General Project → LLM - General Project → Answer - General Project
test_related → KR - Test Related → LLM - Test Related → Answer - Test Related

For each branch:

1. Add a Knowledge Retrieval (KR - General Project or KR - Test Related): Query Text sys.query, knowledge Jira_API_Advanced_*, Metadata Filtering Disabled, Top K 4.
2. Add an LLM (Temperature 0.3) and set Context to that branch's retriever result.
3. Paste the matching prompt, then add the Answer node.

Don't forget the Context. If the Context field is empty, the {{#context#}} block in the prompt stays empty. The LLM then follows its own rule and replies "I can't find relevant information" to every question, even though the retriever found the right issues.

Context bound to the branch's own retriever

LLM - General Project → SYSTEM

You are a software testing assistant helping engineers understand the Atlassian REST project: its scope, modules, features and open work.

Answer only from the context below. Never use outside knowledge. The context contains several Jira issues; combine them into one answer.
If the context does not help answer the question, reply exactly:
"I'm sorry, I can't find relevant project information in the documentation to answer that."

Your reply should:
- Answer the question directly in the first sentence
- Support it with the Jira issues in the context, citing their keys (for example REST-320)
- Point out what matters for testing when it is relevant

Context:
{{#context#}}

User question:
{{#sys.query#}}

LLM - Test Related → SYSTEM

You are a senior test engineer advising a team that works on the Atlassian REST project.

Answer only from the Jira issues in the context below. Never use outside knowledge.
If the context does not help answer the question, reply exactly:
"I'm sorry, I can't find relevant testing information in the project documentation to answer that."

Your reply should:
- Name the Jira issues that create the risk or need testing, with their keys
- Explain each risk in one sentence
- Recommend what to test: the test level (unit, integration, regression, security) and concrete checks
- Order the recommendations by risk, highest first

Context:
{{#context#}}

User question:
{{#sys.query#}}

✅ Check it

Ask What is this project about? (Answer - General Project) and What should we test for backward compatibility? (Answer - Test Related). The test answer should name REST-266 and rank its recommendations by risk:

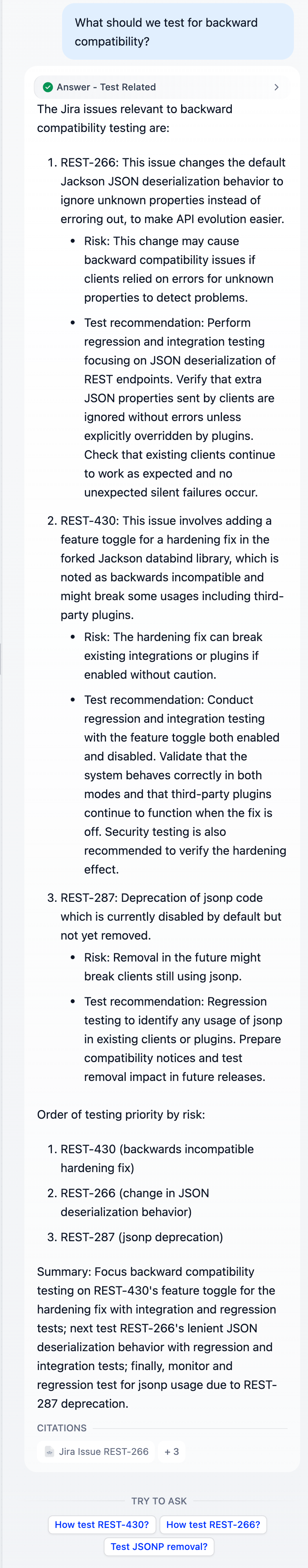

Risks and tests, each tied to a Jira key

---

🛠️ Step 5: Branch test_generation: With or Without Issue Keys

Users ask for tests in two ways: "Generate test cases for REST-266" (ground them in the issue) and "Create test scenarios for a password reset feature" (no issue, just a requirement). An IF/ELSE node picks the path.

test_generation → Issue Keys Extractor (Tests) → Has Issue Keys?
  IF → Iteration - Tests [ KR - Issue for Tests ] → Combine Results (Tests) → LLM - Gherkin from Issues → Answer
  ELSE → LLM - Gherkin from Requirement → Answer

1. Issue Keys Extractor (Tests): same parameter and instruction as in Step 3.1, but turn Required off. A requirement without keys should return an empty list, not fail.
2. IF/ELSE named Has Issue Keys?: IF Issue Keys Extractor (Tests) / issue_keys is not empty. Leave ELSE as the other path.

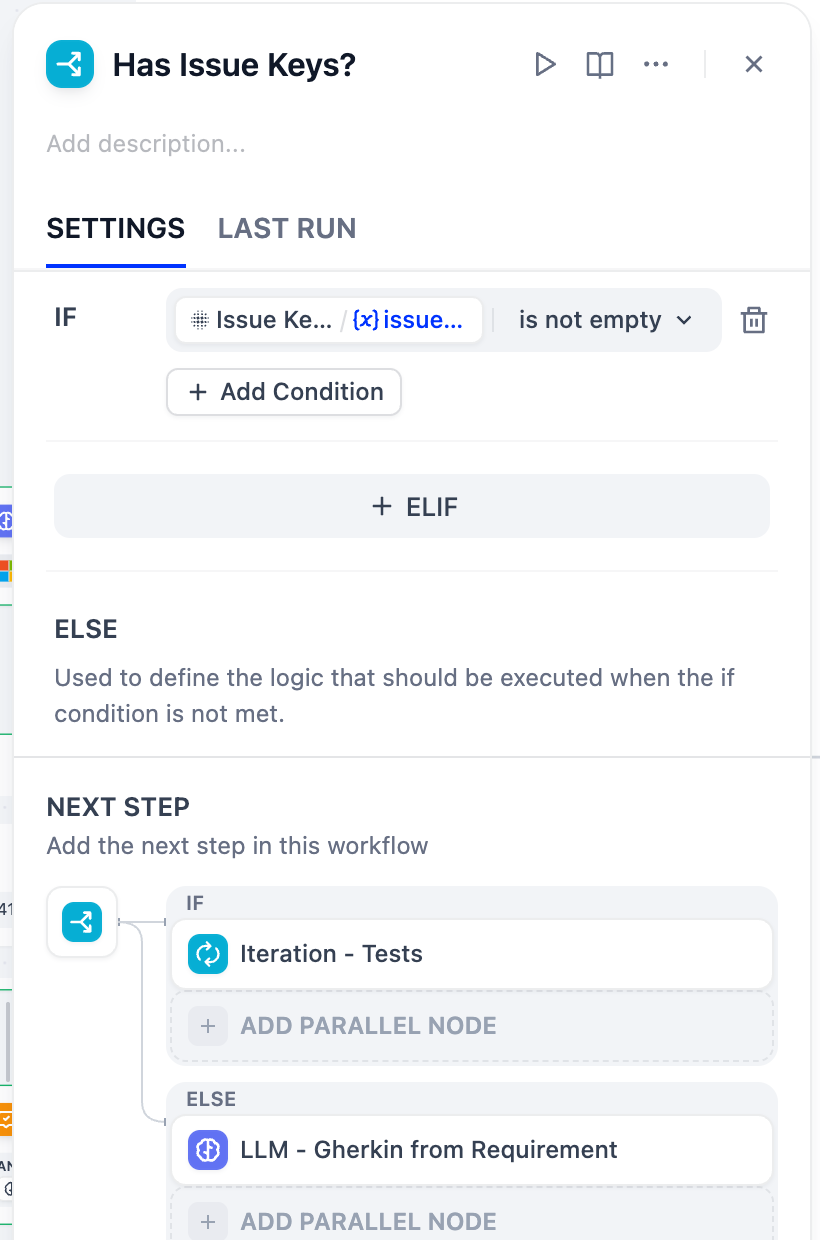

IF keys were found → issue-based tests; ELSE → requirement-based tests

3. IF path: rebuild the Step 3 pattern. You can select Iteration - Issues and Combine Results, copy them (Ctrl/Cmd+C) and paste them (Ctrl/Cmd+V), then re-point every variable at the test branch: the Iteration input, the inner retriever's query and filter, and both Code inputs. Rename the copies Iteration - Tests, KR - Issue for Tests and Combine Results (Tests). Then add LLM - Gherkin from Issues with Context set to Combine Results (Tests) / flat_context, and replace [batch_status] as in Step 3.4:

LLM - Gherkin from Issues → SYSTEM

You are an experienced test designer. Write Gherkin test scenarios for the Jira issues in the context below.

Use only the behaviour described in the context. Do not invent endpoints, fields or error messages.

Batch status: [batch_status]
If the batch status starts with "Partial result" or "No requested Jira issues", begin your reply with that status and name the missing keys. Only write scenarios for issues that are in the context.

For each issue:
- A heading "### <issue key>: <summary>"
- One gherkin code block with a Feature and two or three Scenarios: the main behaviour, an edge case, and a regression check when relevant
- Concrete, testable Given/When/Then steps

Context:
{{#context#}}

User request:
{{#sys.query#}}

4. ELSE path: add LLM - Gherkin from Requirement with no Context. There is nothing to retrieve; the requirement is in the question itself.

LLM - Gherkin from Requirement → SYSTEM

You are an experienced test designer. The user describes a requirement in their own words, without a Jira issue key.

Write Gherkin test scenarios for that requirement:
- One gherkin code block with a Feature and three to five Scenarios
- Cover the main flow, invalid input and at least one edge case
- Keep every step concrete and testable; leave out steps that check nothing
- If the requirement is too vague to test, ask one clarifying question instead of guessing

User requirement:
{{#sys.query#}}

5. Give each LLM its own Answer node.

✅ Check it

Generate test cases for REST-266 should reply from Answer - Gherkin from Issues with scenarios that match the issue. Create test scenarios for a password reset feature should take the ELSE path.

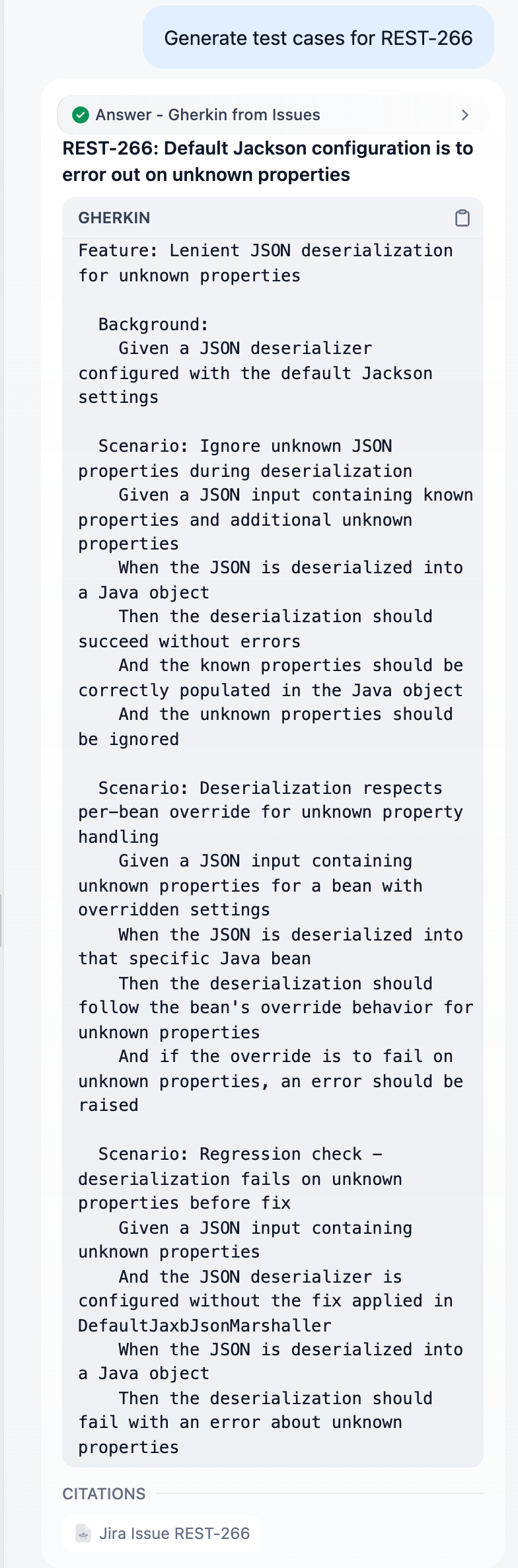

Gherkin grounded in the retrieved issue

---

🛠️ Step 6: Branch unrelated_or_invalid: Polite Redirect

From the last class handle, add LLM - Polite Redirect (no Context, no retrieval) and its Answer node. Nothing is retrieved, so the model has nothing to be tempted to misuse. The reply must start with an explicit refusal ("I'm sorry, I can't help with that…"), the same contract as the Exercise 3 chatbot, so that automated tests such as those in Exercise 5 recognise it. Its example question deliberately names no issue key: a refusal shouldn't mention Jira issues.

LLM - Polite Redirect → SYSTEM

You are Testus Patronus, an assistant that only helps with software testing for the Atlassian REST Jira project.

The user's message is outside that scope. Do not answer it, not even partially.
Start your reply with exactly: "I'm sorry, I can't help with that: it isn't covered by the project documentation."
Then add one friendly sentence: say what you can help with (Jira issues, project scope, test strategy and Gherkin test cases) and suggest one example question that doesn't name a specific issue, such as "What is this project about?".

User message:
{{#sys.query#}}

Out-of-scope requests get a friendly redirect

---

🧪 Step 7: Run the Acceptance Questions

Run each question in Preview, starting a new conversation (the ↻ icon) each time. The label above each answer tells you which branch replied.

Question	Expected answer node	Passes when
What is REST-266 about?	Answer - Specific Issue	Describes REST-266, with one REST-266 citation
What does issue 266 fix?	Answer - Specific Issue	"issue 266" is normalized to REST-266
What is REST-999 about?	Answer - Issue Not Found	Says REST-999 can't be found; no invented details
Summarize REST-266 and REST-265	Answer - Multiple Issues	One section per issue, citations for both
Summarize REST-266 and REST-999	Answer - Multiple Issues	Starts with "Partial result… Missing: REST-999"
What is this project about?	Answer - General Project	Summary backed by cited Jira keys
What should we test for backward compatibility?	Answer - Test Related	Names REST-266 and ranks tests by risk
Generate test cases for REST-266	Answer - Gherkin from Issues	Gherkin scenarios that match REST-266
Create test scenarios for a password reset feature	Answer - Gherkin from Requirement	Gherkin scenarios, no Jira citations
Which issue reports that CORS preflight requests are not supported?	Answer - General Project	Names REST-366: no key, so Has Key? falls back to semantic search
Write me a poem about the sea	Answer - Polite Redirect	Starts with "I'm sorry", names no Jira issue, and suggests a testing question

Once they all pass, Publish and name the version, as in Exercise 3.

When something doesn't pass

Symptom	Likely cause	Fix
A made-up answer for a key that doesn't exist	The LLM runs on an empty context	Add the Issue Found? IF/ELSE from Step 2.4
"I'm sorry, I can't find in the project documentation" (a blank where the key should be)	The question names no key, and there is no fallback	Add the Has Key? IF/ELSE from Step 2.2
"Can't find" for an issue that exists	Score Threshold is on in the filtered retriever, or the filter points at the wrong or a deleted variable	Turn the threshold off. Open the filter's Conditions and check that the value is the current extractor's issue_key (or the Iteration's item)
Nodes from two branches run for one question, and the answers are mixed	One class handle connects to two branches	Keep one connection per class handle; move the extra one to the right class
"issue 266" becomes ISSUE-266	The extractor instruction lacks the normalization rule	Paste the extractor instruction from this page
Every project or testing question gets "can't find relevant information"	The LLM's Context field is empty	Set Context to the branch retriever's result
The Iteration runs zero times	The extractor output name doesn't match (issue_key vs issue_keys)	Use issue_keys (Array[String]) and re-select the Iteration input
A multi-issue answer only describes one issue, or mixes them up	The inner retriever searches with sys.query	Use Iteration / item as Query Text and as the filter value
The question goes down the wrong branch	Classifier temperature is too high or the instruction is missing	Temperature 0, and paste the classifier instruction

Open the Workflow Process of a run (the label above the answer) or the node's Last Run tab to see each node's input and output, just like the retrieval trace in Exercise 3.

---

🔭 Going Further

You now use two advanced RAG techniques: metadata filtering (exact-key retrieval) and multi-query retrieval (one search per issue). Here are more ideas to try on your own.

🧹 Query rewriting. Vague questions retrieve vague context. Add an LLM node before retrieval in general_project that rewrites the question into a precise search query (for example "Which issues touch JSON?" → "Jackson JSON serialization deserialization issues"), and use its output as the retriever's Query Text. Compare the retrieved chunks before and after.

🎯 Chunk design. Small chunks match precise questions; large chunks keep context together. Re-ingest a copy of the knowledge base with a different chunk size and compare the test_related answers.

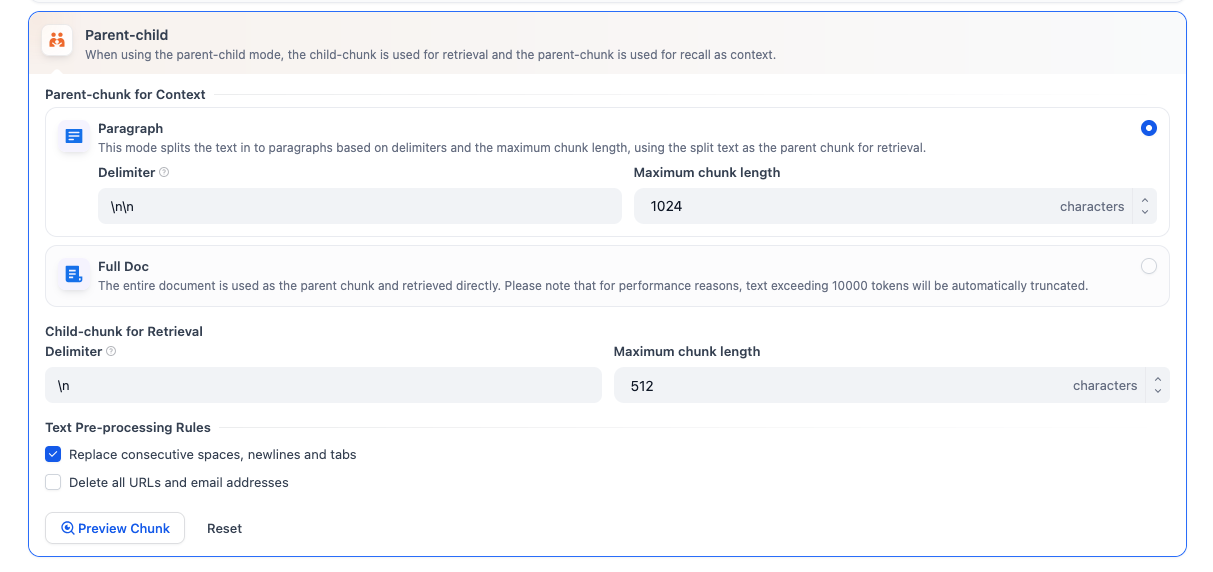

🪜 Parent-child retrieval. Sometimes the answer needs a whole group: an epic and its stories, or a test suite and its cases. Store the parent in metadata (for example epic_id), retrieve one item, then retrieve its siblings by filtering on that parent.

🧠 More classes. Add a class such as issue_status ("Which issues are still open?") and route it to a retriever filtered on status metadata.

---

🗂️ Solution Download

⬇️ Download Exercise 4 Solution DSL

Import it with Studio → Import DSL file. The file refers to a knowledge base on the instance it was exported from, so reselect Jira_API_Advanced_* in these five nodes before running it: KR - Single Issue, KR - Each Issue, KR - General Project, KR - Test Related and KR - Issue for Tests. Then check that the three filtered retrievers (KR - Single Issue, KR - Each Issue, KR - Issue for Tests) still show Conditions 1 under Metadata Filtering.

---

🌟 Wrap-up

Your assistant now picks the right retrieval strategy for each question. It looks up exact issues by key, handles several issues without mixing them up, reports what it couldn't find, writes Gherkin tests from issues or requirements, and stays in scope. Keep experimenting, and use the acceptance table to check that every change still passes.
